General Specifications

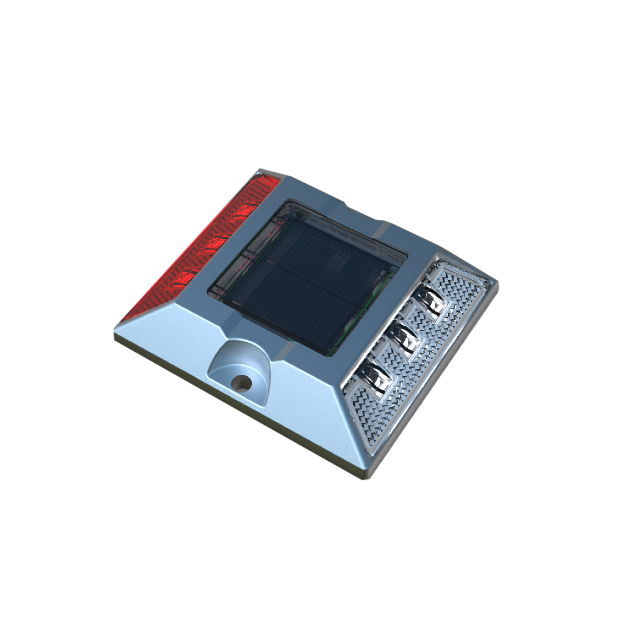

| Function： | Solar Road Stud |
| Dimension： | 110*100*24mm |
| Color： | Red / Amber / Clear |
| Material： | Aluminum alloy and polycarbonate |
| Specification： | 6 pcs LED |
| Power storage： | Battery / Capacitor |
| Solar cell： | Mono-crystalline silicon |
| Temperature： | -40℃~60℃ |
| Water proof： | IP>67 |
| Luminous type： | Flashing/Constant |
| Load capacity | 25 tons |
| Viewable distance | >800M |
| Flashing duration | 7-10 days for flashing, 20 hours to constant |
2D Drawings
